Details

---

MAHR - Workshop Calipers MarCal 18N
Brand: Mahr
Model: 4112200

Application:
With two mm scales and vernier scales to directly read external and internal dimensions
- Lower scale for external dimensions
- Upper scale for internal dimensions

Product Features:

• Vernier and scale have a satin chrome finish for glare free reading
• Locking screw above
• Rounded measuring blades for inside measurements
• Measuring surfaces made of steel
• Slide and beam made of hardened stainless steel
• Raised guideway for the protection of the scale


Technical Data:
Technical Data:

Measuring range	:	0 - 200
Readings mm	:	0.02 mm
Error limit	:	0.05 mm

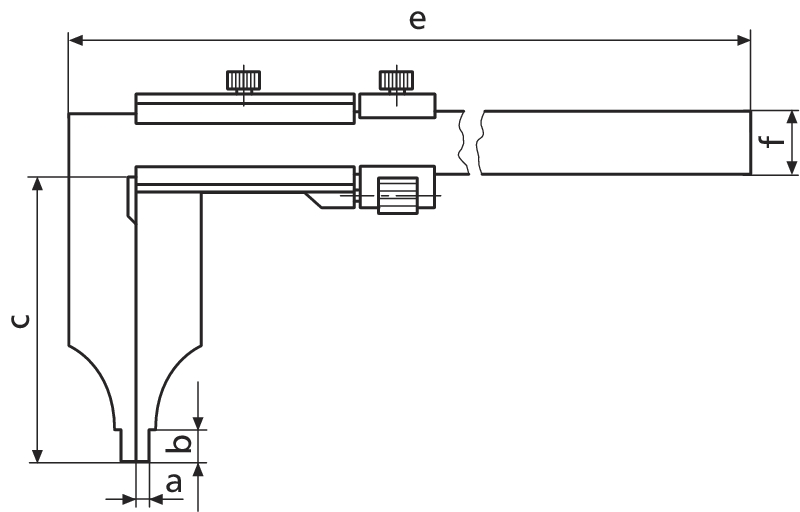

Dimension:
a: 5 mm
b: 10 mm
c: 80 mm
e: 310 mm
f: 20 mm
