Details

---

MAHR - Digital Caliper
Brand: Mahr
Model: 4103380

Application:
Outward-angled measuring surfaces for measuring recesses in bores

Function:
ON/OFF, AUTO-ON / OFF, mm/inch, LOCK function (key lock), RESET (set display to zero), PRESET (for entering a numerical value), DATA (data transmission), HOLD (storage of measured values)

Product Features:

• High contrast analog display
• Locking screw above
• Lapped guideway
• Slide and beam made of hardened stainless steel
• Immediate measurements due to the Reference System
• Raised guideway for the protection of the scale
• Excellent resistance against dust, coolants, and lubricants
• Dirt wipers are integrated in the slide


Energy supply:
Battery life approx. 3 years (approx. 0.5 in wireless mode)

Technical Data:

Measuring range	: 10 - 160
Measuring range inch	: 0.4 - 6.3''
Resolution	: 0.01 mm
Resolution	: 0.0005 inch
Error limit	: 0.03 mm
Height of digits	: 11 mm

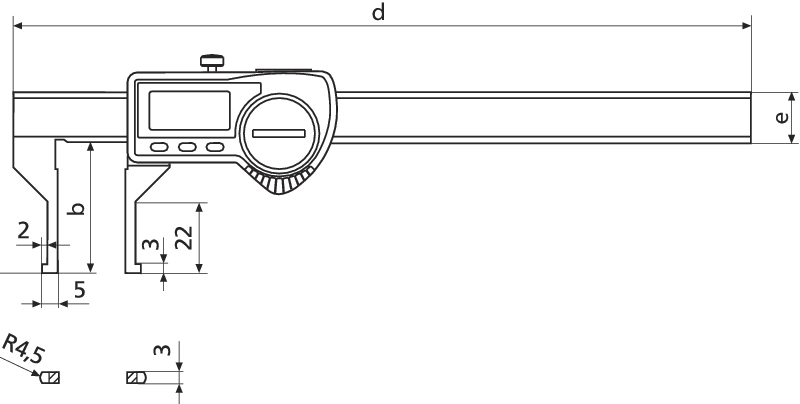

Dimensions:

b : 40 mm d : 235 mm e : 16 mm
