MITUTOYO - ABSOLUTE Digimatic Depth Gage Series 571
Category: Dimensional Measurement
Specifications
Details
MITUTOYO - ABSOLUTE Digimatic Depth Gage Series 571
Brand: Mitutoyo
Model: 571 Series – Hook-End Type
Features:
· ABSOLUTE Digimatic Depth Gage can keep track of the origin point, once set, for the life of the battery.
· Base and measuring faces are hardened and micro-lapped.
· Optional wider extension bases are available.
· With SPC data output.
Specifications:
Inch / Metric
Dimensions:
Model: 571 Series – Hook-End Type
Features:
· ABSOLUTE Digimatic Depth Gage can keep track of the origin point, once set, for the life of the battery.
· Base and measuring faces are hardened and micro-lapped.
· Optional wider extension bases are available.
· With SPC data output.
Specifications:
Inch / Metric
| Range | Order No. | Resolution | Accuracy | Mass (g) |
|
0 - 6” / 0 - 150mm |
571-264-20 |
.0005” / 0.01mm |
±.0015” | 578 |
|
0 - 8” / 0 - 200mm |
571-265-20 |
.0005” / 0.01mm |
±.0015'' | 598 |

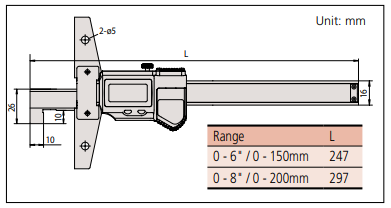

Dimensions:
