LINSHANG - Multilayer Ultrasonic Thickness Gauge LS216
Brand : Linshang
Model : LS216

Product Descriptions

The ultrasonic thickness gauge is designed based on the pulse reflection ultrasonic measurement principle. It is professionally used to measure the thickness of the coating on the surface of non-metallic substrates such as plastic parts, wood, glass, and the thickness of the substrate itself. It can oals measure the thickness of the coating on the surface of metal substrates and the thickness of the metal substrate itself.

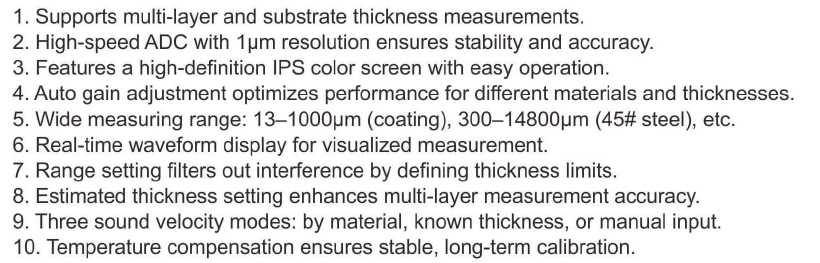

Product Features



Technical Specifications


Parameter Name	Parameter Value
Measuring Range	13-1000μm (epoxy coating), 300-14800μm (45# steel)
Resolution	1μm
Measuring Accuracy	≤±(3%H+3μm), H is the standard value
Sound Velocity Range	1000~9999m/s
Minimum Measuring Area	Φ6mm
Display	800 * 480 dot matrix IPS color screen
Unit	μm/mil
System Language	Simplified Chinese, English
Host Size	141.7*91.1*22.6mm
Probe Size	Φ26*42.1mm
Weight	475g
Operation Temperature Range	0~40℃, 0~85%RH (no condensation)
Storage Temperature Range	-10~50℃，0~85%RH (no condensation)
Supply Voltage	Rechargeable lithium battery 3.7V@4000mAh
Charging Interface	USB(Type-C)
Supply Voltage	DC5V
