Details

---

MITUTOYO - SJ-411 Portable Surface Roughness Tester 178-581-31E
Brand : Mitutoyo
Model : 178-581-31E

Product Features

• Skidless system with touch-screen functionality and built-in printer
• It works independently of mains power, allowing you to make on-site measurements
• Easy and intuitive menu navigation
• The large 14.5 cm [5.7“] colour LCD gives you high visibility
• The skidless detector allows you to measure the primary profile (P), roughness profile (R), waviness profile (W) and more
• Surface compensation of curved, radial and tilted surfaces
• It performs roughness analyses conform to various international standards (EN ISO, VDA, ANSI, JIS) and customized settings
• You can store up to 10 different measuring conditions inside the SJ-410, and up to 500 with an optional SD card
• It allows two different evaluation conditions within one measurement adjustable
• You can separately password protect many functions
• It comes with support for 16 languages
• Available options include an auto-set unit, X-axis fine adjustment and digital levelling unit

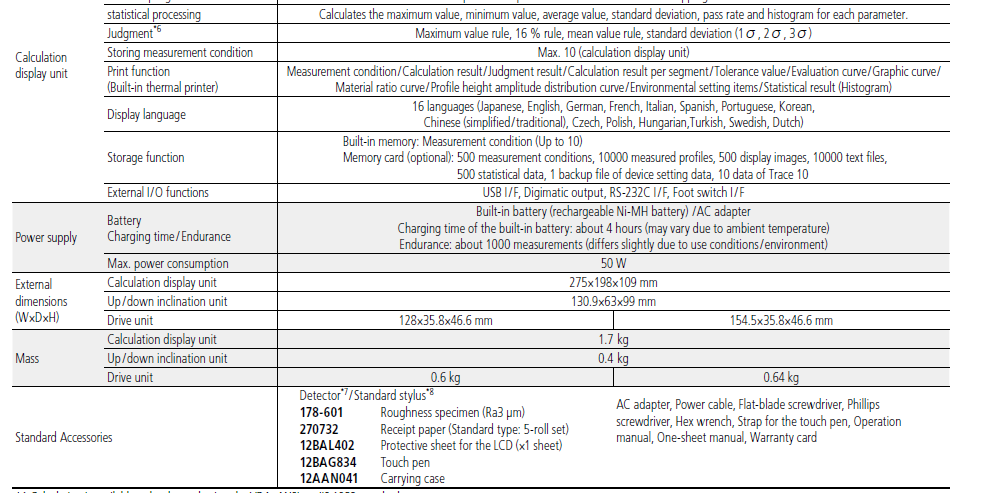

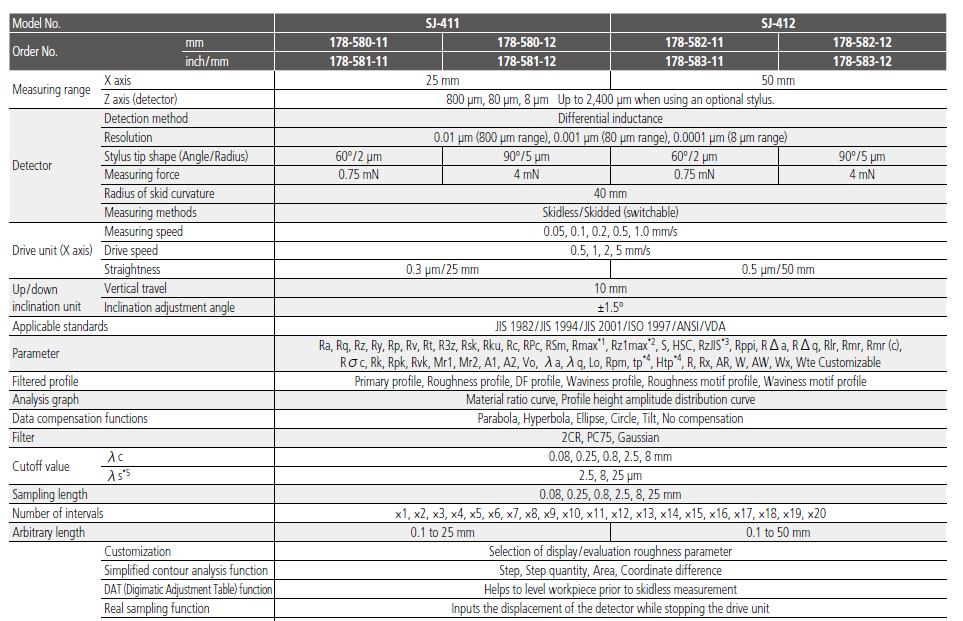

Technical Specifications
